Product Information

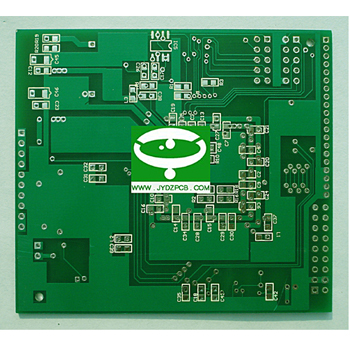

| Number：J5005A 1 | Product Name: double-sided circuit boards | Category: Electronic |
| Customize: PCB | Brand: JingYi electronic | Model：J5005A 1 |
| Origin: Wenzhou |
Plate type: FR-4 epoxy fiberglass board
Production process: ordinary spray tin, lead-free HASL, gold plating, immersion gold
Maximum processing layers: single, double thickness range: 0.6mm, 0.8mm.1.0mm, 1.2mm, 1.6mm
Solder Type: Photographic ink, green oil, white oil, blue oil, diesel oil, black oil, butter
Process Capability:
(1) Drilling: Minimum finished hole 0.3mm
(2) hole metallization: Minimum aperture 0.3mm, thickness / diameter ratio of 4:1
(3) wire width: Minimum width: gold plate 0.10mm, tin plate 0.125mm
(4) Wire spacing: Minimum spacing: gold plate 0.10mm, tin plate 0.125mm
(5) gold plate: nickel layer thickness:> or = 2.5μ gold layer thickness :0.05-0 .1 μm or according to customer requirements
(6) spray tin plate: tin layer thickness:> or = 2.5-5μ
(7) Milling board: Wire-to-edge minimum distance: 0.15mm hole to edge minimum distance: 0.2mm Min Outline Tolerance: ± 0.15mm
(8) outlet chamfer: angle: 30 degrees, 45 degrees, 60 degrees Depth :1-3mm
(9) V Annual: angle: 30 degrees, 35 degrees, 45 degrees Depth: thickness 2/3 of the minimum size: 100mm * 150mm
(10) Continuity test:
Maximum test area: 400mm * 500mm
Maximum test points: 8000 points
Maximum test voltage: 300V
Maximum insulation resistance; 100M Europe
